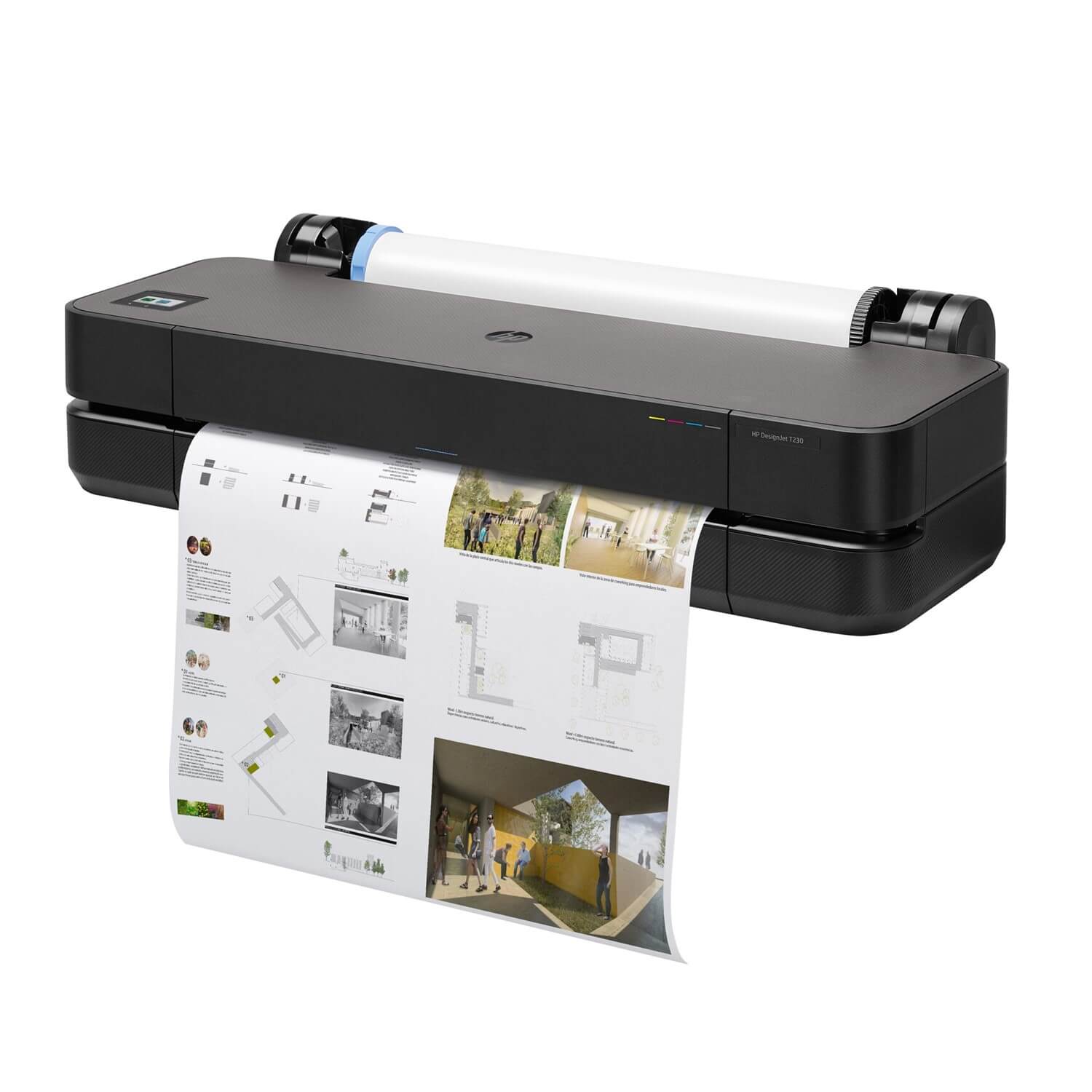

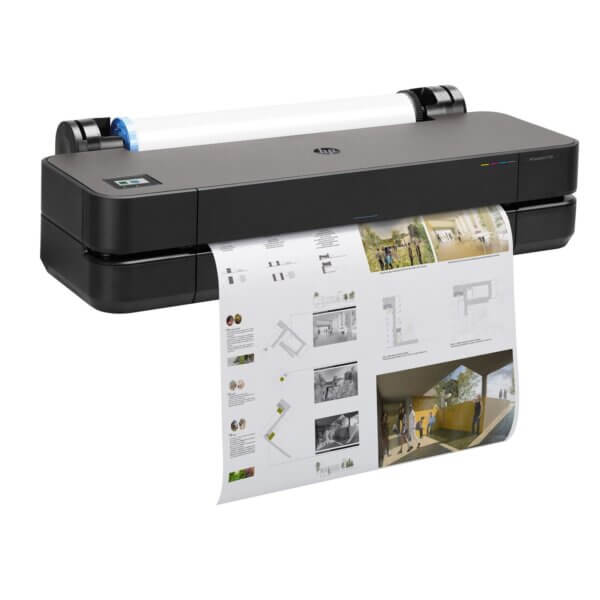

HP DesignJet T230 24-in Printer (Tabletop)
HP DesignJet T230 24-in Printer (Tabletop)
HP DesignJet T230 24-in Printer (Tabletop)

HP DesignJet T230 24-in Printer (Tabletop)

$1,100.00 Tax not included

5HB07H

In Stock

, , ,

HP DesignJet T230 Large Format Compact Wireless Plotter Printer – 24″, with Mobile Printing  with 2 year service pack (5HB07H)

  • 35 sec/page on D, 68 D prints per hour
  • Dye-based (C, M, Y); pigment-based (K)
  • Sheet feed, roll feed, automatic horizontal cutter, optional automatic sheet feeder includes tray
  • Compliant with Class B requirements, including: USA (FCC rules)
  • Dynamic security enabled printerSee all Specs



Additional information

Weight 30 lbs
Dimensions 30 × 12 × 15 in

About this Product

The world’s smallest wide-format printer[4] with a built-in stand, is designed to fit your office, budget, and the way you work. Print multi-size projects with ease. Print your A1 plot as fast as 30 seconds. 1 GB memory.
AEC, GIS, and MCAD professionals who want to print maps, technical drawings, posters, and renders with precise, accurate line quality and crisp text
This is affordability without any tradeoffs as the world’s easiest to use large-format printer.[1] Impressive simplicity that helps you stay productive. Cost saving efficiencies like using 95% less ink for routine maintenance.[5] Save time and money.
This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:
http://www.hp.com/learn/ds
More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% UL Validated recycled plastic.; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered

Extreme simplicity

Print multi-size A3/B and A1/D or A0/E projects automatically, without manually switching the media source. Save time with the world’s easiest job submission[2]—send multiple files in one click with HP Click.[3] Print with confidence you’ll get the results you expect with an intuitive driver and true print preview.

Fits your office and budget

Save space with the world’s smallest plotters[4] designed to fit your office, including a built-in stand. Use up to 95% less ink for routine maintenance vs competitor and get up to 100 extra A1/D pages per month.[5] More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% recycled plastic.[6]

Fits the way you work

Avoid waiting by the printer with high-speed printing as fast as 30 seconds per A1/D plot. Be more productive—save time from job prep to final print by printing your projects up to 2X faster.[2] Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app. Get high-quality results—HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut.[7]

Product Specifications:

TECHNICAL DETAILS

HP DESIGNJET T630 PRINTER SERIES

Functions

Print

Print speed, maximum

30 sec/page on D, 76 D prints per hour[1]

Resolution (color)

Up to 2400 x 1200 optimized dpi

Print Technology

HP Thermal Inkjet

Number of print cartridges

4 (C, M, Y, K)

Product disclaimer

This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:http://www.hp.com/learn/ds

Compatible ink types

Dye-based (C, M, Y); pigment-based (K)

Print languages

HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Memory, standard

1 GB

Hard disk

None

Non-printable area (cut-sheet)

0.2 x 0.2 x 0.2 x 0.7 in (manual feed); 0.2 x 0.2 x 0.2 x 0.2 in (input tray)

Line accuracy

±0.1%[3]

Maximum optical density (black)

8 L* min/2.10 D[4]

Finished output handling

Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

Media sizes supported

Auto sheet feeder: A, B; manual feed: A, B, C, D, E

Media sizes supported

Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0

Media sizes, custom

Auto sheet feeder: 8.3 x 11 to 13 x 19 in; manual feed: 8.3 x 11 to 36 x 74.7 in

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media sizes, standard

11 to 36 in

Roll external diameter

3.9 in

Media thickness

Up to 11.8 mil

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max. Not dual voltage, power supply varies by part number with # Option code identifier.

Power consumption

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

Operating temperature range

41 to 104ºF

Warranty

One-year limited hardware warranty

Software included

HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

Dimensions (W X D X H)

51.9 x 23.8 x 36.7 in

Weight

76.5 lb

Package weight

121.9 lb

What’s in the box

HP DesignJet T630 36-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

Sustainability Impact

More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% UL Validated recycled plastic.; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered

Recommended Media

Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m (24 in x 100 ft)

Dynamic security

Dynamic security enabled printerCertain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
