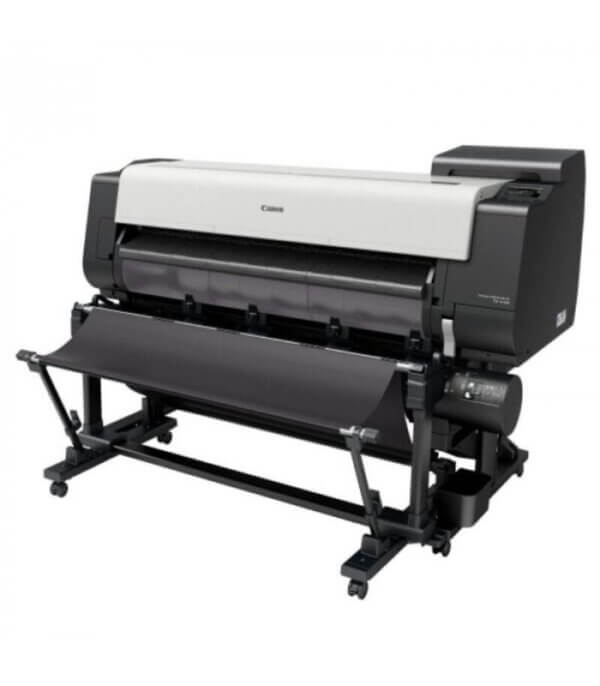

Canon imagePROGRAF 44" TX-4100 Printer with Stacker
Canon imagePROGRAF 44" TX-4100 Printer with Stacker

Canon imagePROGRAF 44″ TX-4100 Printer with Stacker

Get a Quote

tx4100

In Stock

Lease this printer for only $145.00 per month! Contact us for more information!

imagePROGRAF TX-4100

  • Intelligent Media Handling
  • Media Output Options
  • Optional 2nd Roll Unit
  • LUCIA TD Pigment Ink Set
  • Sub Ink Tank System
  • Print Head PF-06

About this Product

The Next Standard of Engineering.

The new 44-inch TX-4100 large-format printer has been upgraded with faster printing speeds, an enhanced automatic roll loading function, and free-size borderless printing to improve productivity and efficiency. Preprocessing technology between pages and a faster cutter speed help to achieve printing speeds up to 3.2 ppm (plain paper, drawings) during continuous printing.

Product Specifications

Technical Specifications

Main Unit Specs

Printer Type
5-Color 44-inch Printer
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2400×1200dpi (Max)
OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016, 2019 (64bit)
Macintosh® OS 10.12.6 and later
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size
5 picoliter
Ink Capacity
160 ml, 330ml or 700ml per color
Ink Types
Pigment Ink
Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram
128 GB (Virtual) 2 GB (Physical)
Hard Drive
500 GB
Media Width
Cut Sheet – 6” – 44”
Roll Feed – 6” – 44”
Media Thickness
0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length
Roll Feed – 59 (18 meters)
Maximum Media Roll Diameter
6.7” (170m)
Borderless Printing Width
All sizes
Paper Feed Method
Roll Feed: One Roll, Front-loading, Front Output
Front Loading Manual Feed: Cut Sheet, Front Output
Languages
SGRaster, HPGL/2, HP-RTL, PDF, JPEG
Noise Level Approx
Operation: 51 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.9 Bels or less
Physical Dimensions
46” x 63” x 47” (Main unit and TX Stacker)
46” x 63” x 39” (Main unit and Catch Basket Opened)
Weight
approx. 278 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads)
approx. 252 lbs (Main unit and Catch Basket roll holder included, no inks, no print heads)
Power Source
AC-100-240V (50-60Hz)
Power Consumption
Maximum: 116W or less
Standby 2.0W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-06), Maintenance Cartridge (MC-30), Ink Tanks (PFI-110/PFI-310/PFI-710)
Software Available
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Printer Driver Extra Kit, Free Layout Plus, TX Unified Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select
